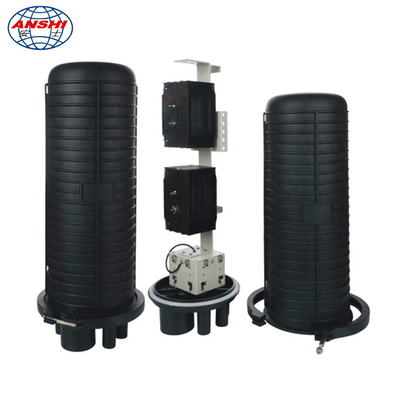

IP68 Protection Level Fiber Dome Closure , FOSC 144 288 312 Cores Fiber Optic Joint Box

Place of Origin ZHEJIANG, CHINA
Hàng hiệu ANSHI
Chứng nhận SGS, ISO9001
Model Number AS-GPJ-B
Minimum Order Quantity 10
Giá bán Negotiable
Supply Ability 5000pcs/week

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Thông tin chi tiết sản phẩm
name Fiber Optic Joint Box Max Capacity 312 core
Material PP Protection Level IP68
Cable entry ports 3 in & 3 out max 8 Cable Diameter (mm) Φ10-Φ25.5 mm
Điểm nổi bật

Fiber Optic Joint Box

,

Fiber Optic Joint Closure

Để lại lời nhắn
Mô tả sản phẩm

IP68 Dome Type FOSC 144 288 312 Cores Fiber Optic Splice Closure



AS-GPJ-A/B is made of high density reinforced material, can be use for aerial, undersground, man-hole, duct and pole; it's good at mechanical properties, complete grounding system, convenient to operate and to re-open; fiber optic splice tray uses overlay type, flexible configuration, apply to common fiber optic cable and ribbon cable.
The inside uses metal structure, which is greatly imrpoving the strength. External is made of PP, which is lightweight. It uses technology: cold shrink or heat shrink, with a good sealing performance; reach IP68. We can provide full sets, such as grounding wire, cold shrink tube (or heat shrink tube), split clips and son accessories.




Main Technical Indexes:

1. Airproof performance: Airing pressure inside box 100Kpa, pointer immovability after 24 hours or no air bell within 15min when parked in the common temperature water.

2. Re-encapsulation performance: no change in the index of air-proof performance after three times of repeat encapsulation



Item AS-GPJ-A
Dimension (L x W mm) 696x290mm
Cable Diameter (mm) Φ10-Φ25.5
Cables Entry & Exit 7 pieces, max. 8 pieces
Max Capacity of Cores 312cores (F)
waterproof and dustproof IP68
